LDAP

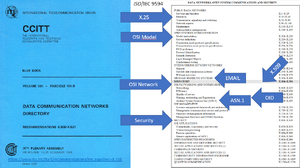

OSI Protocols
https://www.itu.int/itu-t/recommendations/rec.aspx?rec=X.500
X.500 1984 – 1994
http://sec.cs.kent.ac.uk/x500book/ by D W Chadwick (Weird and Wonderful, Paradise/Cosine)
ASN.1 Type Length Value
X.500 Directory Access Protocol
(famous for X.509v3)
IETF
RFC4510 Technical Specification Road Map
RFC4511 LDAP: Directory Information Models
RFC4512 The Protocol
RFC4513 Authentication Methods and Security Mechanisms
RFC4514 String Representation of Distinguished Names
RFC4515 String Representation of Search Filters
RFC4516 Uniform Resource Locator
RFC4517 Syntaxes and Matching Rules
RFC4518 Internationalized String Preparation
RFC4519 Schema for User Applications
RFC4524 COSINE LDAP/X.500 Schema
Kurt D Zeilenga, LDAP RFC author and creator of OpenLDAP
https://www.zytrax.com/books/ldap/
https://ldapwiki.com/wiki/RootDSE
Schema, object tree
namingContext
RootDSE
ldapsearch -Q -LLL -Y EXTERNAL -H ldapi:/// -s base -b "" (objectclass=*) ldapsearch -Q -LLL -Y EXTERNAL -H ldapi:/// -s base -b "" objectclass="*" namingContexts
objectClass=top
ldapsearch -h hostname -b "" -s base "(objectclass=*)"
ldapsearch -Y EXTERNAL -H ldapi:/// -b cn=config ldapmodify -Y EXTERNAL -H ldapi:/// -b cn=config -f loglevel.ldap ldapmodify -Y EXTERNAL -H ldapi:/// -f loglevel.ldap ldapsearch -Y EXTERNAL -H ldapi:/// -b cn=config olcLogLevel
Centralized O&M access
By default O&M users groups and roles are management on the local nodes. Authentication and access control are in general file based, so the useraccounts and passwords are stored local. Implementing password policies will have to be done on all of the nodes and one user has to be created on all nodes independently.
Using a general directory for o&m user management the accounts are managed centrally. User accounts will be created once and a attached to the userprofile is a list of hosts the user is allowed to access. The password can be managed in a central way and users can be removed from the directory when access should be revoked.
Configuring all nodes to conform to the policies and requirements can be skipped. With an extra effort the nodes can be adapted for central user management by a customer adaptation project
LDAP
Both IS and TSP are related to unix / linux systems. Defacto standard for user management is PAM pluggable authentication module. It provides a modular approach to user management. Applications implementing the PAM interface will ask PAM to authenticate users. PAM also allows for modules to act as source of the user credentials. One module is libpam_ldap which connects to the central ldap directory which has all users according to the posixAccount schema as hinted in RFC 2307. This module complements file based user management with ldap clients.
Centralized O&M Access Control
Using LDAP
LDAP
Light weight directory access protocol, as opposed to ITU-T X.500
University of Michigan, OpenLDAP, ASN.1, back-end driver
Description
LDAP defines the access to a database tree. It can be used to store usernames, user-id and passwords for external systems. When a user logs in to an external system which uses an LDAP client the system will retrieve the database tree for that user and based on the password hash decide if the user authenticated using the same user.
ldap server
OpenLDAP Opensource, driven by Kurt Zeilenga, who published the LDAPv3 RFC
Novell eDirectory (NDS) As used in the OSS-SLS server
Microsoft AD Windows Server
Oracle OID As used in MMC
Sun ONE (Sun Java System Directory Server, iPlanet DS)
ApacheDS (OTP triplesec safehaus)
Name Service Caching
To limit the amount of lookups entries could be cached for a specific amount of time a caching service could be used. For a configurable amount of time the user entry is cached on the local system.
NSSWITCH
Name service switch configures where a posix system should retrieve user information from. By default this is "files". The system retrieves the user information from the /etc/passwd and /etc/group. By using "ldap" the system will retrieve the information from the ldap server.
passwd: compat ldap group: compat ldap shadow: compat ldap
nis.schema
objectclass ( 1.3.6.1.1.1.2.0 NAME 'posixAccount'
DESC 'Abstraction of an account with POSIX attributes'
SUP top AUXILIARY
MUST ( cn $ uid $ uidNumber $ gidNumber $ homeDirectory )
MAY ( userPassword $ loginShell $ gecos $ description ) )
dn: uid=bozo,ou=Users,dc=janmg,dc=com uid: bozo uidNumber: 1032 userPassword:: e2NyeXB0fTcwWUMwVkVuZVFrRDI= host: irmatx2.janmg.com
ns-pwd-policy.schema
objectclass ( 2.16.840.1.113730.3.2.13 NAME 'passwordPolicy' AUXILIARY SUP top DESC 'Password Policy object class to hold password policy information' MAY ( passwordMaxAge $ passwordExp $ passwordMinLength $ passwordKeepHistory $ passwordInHistory $ passwordChange $ passwordCheckSyntax $ passwordWarning $ passwordLockout $ passwordMaxFailure $ passwordUnlock $ passwordLockoutDuration $ passwordMustChange $ passwordStorageScheme $ passwordMinAge $ passwordResetFailureCount ) )
PAM
For services that require authentication and support PAM modules the module libpam_ldap can be used as plugin to use ldap client for authentication. The regular libpam_unix and libpam_cracklib can be used
/etc/pam.d/... pam_ldap.so pam_unix.so nullok_secure obscure min=4 max=8 md5 use_first_pass PAMLDAP http://www.padl.com/download/
OPTION 1: Host filter
For single services only (e.g. /etc/pam.d/ssh): #auth sufficient pam_ldap.so auth sufficient pam_ldap.so filter=|(host=this-host.mydomain.net)(host=\*)
For all services at once (/etc/pam_ldap.conf): pam_filter |(host=this-host.mydomain.net)(host=\*)
OPTION 2:
/etc/pam.conf
pam_check_host_attr yes
pam_check_service_attr yes
account required pam_ldap.so
Services
For webservices for apache plugin mod_auth_ldap or mod_ldap can be used
LDAPSharedCacheSize 200000LDAPCacheEntries 1024LDAPCacheTTL 600LDAPOpCacheEntries 1024LDAPOpCacheTTL 600
<Location /protected>
SetHandler ldap-status
Order deny,allow
Deny from all
Allow from operator.com
AuthLDAPEnabled on
AuthLDAPURL ldap://127.0.0.1/dc=janmg,dc=com?uid?one
AuthLDAPAuthoritative on
Require valid-user
</Location>
Root / Administrator
The local root account should not be retrieved over the network, it should remain in the local files. In case the ldap server is not reachable the basic system login remains functional.
/etc/pam-ldap.conf pam_filter !(uidNumber=0)
ldap client
The client configuration should say which ldap servers, which base dn tree, which lookup user and password should be used and how long entries should be cached.
LDAP Server Host: 10.0.0.1 DN of Search Base: dc=islief,dc=com LDAP Version: 3
On these servers a schema that supports users and a mechanism to add users to the trees.
Data object model. Schema, objectClass,. Attributes. DIT RootDN DN / RDN.
attributetype ( 2.5.4.41 NAME 'name'
EQUALITY caseIgnoreMatch
SUBSTR caseIgnoreSubstringsMatch
SYNTAX 1.3.6.1.4.1.1466.115.121.1.15{32768} )
LDIF
Interchange format
version: 1 dn: cn=john smith,ou=people,dc=islief,dc=com changetype: modify objectclass: inetorgperson objectclass: posixaccount uidnumber: 1001 gidnumber: 1000 homedirectory: /var/mail/janmg.com/jsmith objectclass: ourObject
ACL
The server should be configured to give read-rights to the lookup user and write-rights to the administrator user.
access to attr=userpassword by self write by anonymous auth by group.exact="cn=itpeople,ou=groups,dc=janmg,dc=com" write by * none
LDAP TLS (LDAPS)
The communication between the client can be protected with TLS, the server can offer a certificate to show it is the real server, but also the client can show a certificate to show it's validity. A X.509 certificate can be self signed or validated by a CA organization. For a CA organization certificate to work an internet connection is required. A more local solution is to have a private CA server.
RFC 4510
RFC 2307 Profiles
KNOWN SHORTCOMINGS
http://linux.die.net/man/8/nscd
Note that the shadow file is specifically not cached. getspnam(3) calls remain uncached as a result. As a result of this behavior there is not possible to change non-nscd user to another non-nscd user via su service when nscd is running.
http://en.wikipedia.org/wiki/Pluggable_Authentication_Modules
Due to limits of the PAM API, it is not possible for a pam module to request a Kerberos service ticket from a Kerberos KDC, allowing the user to utilize the application without re-authenticating. pam_krb5 only fetches ticket granting tickets, which involves prompting the user for credentials and are only used for initial login in an SSO environment. To fetch a service ticket for a particular application, and not prompt the user to enter credentials again, that application must be specifically coded to support Kerberos, as pam_krb5 cannot itself get service tickets.
http://aput.net/~jheiss/krbldap/howto.html
Note that if the service is not directly accepting Kerberos tickets, but rather is taking a username and password and authenticating the user via pam_krb5, you may not need a service principal. For Red Hat's pam_krb5 it is optional. Solaris 8's pam_krb5 doesn't use it, but for Solaris 9's pam_krb5 it is required that you have a host/hostname principal stored in /etc/krb5/krb5.keytab. An additional note, Solaris 9 apparently doesn't support the des3-hmac-sha1:normal Kerberos key type that is one of the two types specified in the kdc.conf I use. Rather than just ignore that key and use the des-cbc-crc:normal key (which Solaris 9 does support), it refused to work. So when creating the host principals for Solaris 9, use commands like the following (which only create des-cbc-crc keys, instead of both like normal).
The only perfectly secure system is the one that offers no interconnection. The are therefore completely unusable, so some form of access should be granted. For telecommunication systems ITU-T [1] and ISO [2] have defined the planes for Signaling, Data and for O&M access. The last plane gives maintenance personnel the opportunity to assess the state of the system and to make changes if necessary.
Introduction
This document attempts to map the history of centralized user access into the current practice to date. While the mechanisms exist for quiet some time, they are not always the simplest solution in getting. Although experience has shown that managing larger communication networks becomes harder when all systems are treated as single entities.
Business Practice
In a communication production environment, the ownership of responsibilities is a matter of principle. The risk an operator or a vendor is generally minimized. As a consequence systems fulfill requirements of the operator with the smallest amount of adaptations on the vendor systems. Since the most important requirements are put on the end-user experience the operability of systems are left on the wish list.
Security principles like no shared accounts and the use of connection encryption are in practice sacrificed for usability. In a bad practice user accounts are not locked time.
Historical User management
Posix has defined the interface for system calls on user management, like
uid_t geteuid(void);
struct passwd *getpwuid(uid_t uid);
These are traditionally implemented on the local file system in files like /etc/passwd and /etc/shadow. But this is not the mandatory user repository. In the past NIS has fulfilled the role as network based user management. In popular belief ldap can fulfill the same role as NIS in a more secure way. In RFC 2307 an LDAP approach is documented on using nisSchema containing objects like posixAccount as nameservice
LDAP in practice
In practice the implementation of LDAP based authentication requires an investment in time for understanding and integrating the services. The principle components NSS, LDAP, LDAP schema's, LDAP ACL, PAM, SASL, TLS, PKI, X.509 Certificates. need to be glued together, whereas file based authentication systems work "out of the box". The effort of implementing central user management becomes more worthwhile when the number of users and the number of system increases. The implementation becomes nearly impossible in real life where operators have multiple vendors which have multiple platforms and operators and vendors both use multiple third parties.
Standards like RFC 2307 are needed to reach consensus among multiple parties. They form a common understanding between system vendors without the need for close cooperation. On the field of user authentication many systems exists around the same LDAP principles but a major hurdle in compatibility is the use of different schema's. As a practical example Microsoft's Active Directory is not compatible with Novell eDirectory or the Linux / BSD used OpenLDAP, although they use the same ingredients. Applications and their interfaces running on top of these platforms only make the situation more complex.
Consensus
Reinventing the wheel and claiming IPR is tempting but multiple implementation of the wheel already exists, the main goal of this paper is to reaffirm the best practices so far. The idea is to describe a minimal subset of proposed standards like PAM, Kerberos, SASL and
In addition the goal is to define a superset of objects in the schema proposed in RFC 2307. This superset needs to be a subset of already existing schema's in a way to map the most common.
XSSO PAM - Kerberos || PAM-LDAP login || LDAP Directory Schema
Additional Attention points
Single Sign On, Password policies, Kerberos GSSAPI
TLS, Host filter, role based access, application, redundancy / replication. nss caching. Schema attribute mapping.
2 factor authentication (strong), password hashing (salting) AAA Radius / AAA Diameter
Rewrite
Abstract
Introduction
Business Problem
Best Practice Solution
Technical Components
Minimum GLUE
Optional GLUE
Super GLUE
Conclusion
References
Normative References
RFC 4510 " Lightweight Directory Access Protocol"
http://tools.ietf.org/html/rfc2307
RFC 2307 "An Approach for Using LDAP as a Network Information Service"
http://tools.ietf.org/html/rfc2307
Microsoft MSDN, "Active Directory Schema"
http://msdn.microsoft.com/en-us/library/ms675085(VS.85).aspx
X/Open XSSO-PAM
http://www.opengroup.org/pubs/catalog/p702.htm
http://www.opengroup.org/onlinepubs/8329799/
Informative References
Kerberos " Why is Kerberos a credible security solution?"
http://www.kerberos.org/software/whykerberos.pdf
PAM Pluggable Authentication Modules
RFC 86.0
XSSO
http://mirror.sweon.net/madchat/coding/unix/xsso.pdf
LDAP RFC
http://tools.ietf.org/html/rfc4510
LDAP for NIS
http://tools.ietf.org/html/rfc2307
LDAP for rocket scientists
http://www.zytrax.com/books/ldap/
MAX
http://home.subnet.at/~max/ldap/
Active Directory
autorid / rid => rfc2307 unix profile in ldap
LDAP Authentication
With the LDAP bind operation, or password hash comparison
Active Directory (Microsoft Schema)
Microsoft Windows 2000, (and subsequent Server 2003, 2008, 2012, 2016, 2019, 2022, 2025)
Azure AD Authentication Fundamentals
echo %logonserver%
nslookup -t srv _ldap._tcp.dc._msdcs.islief.com
nslookup _msdcs.islief.com
nltest /dclist:ISLIEF
Import-Module ActiveDirectory
(Get-ADDomainController -DomainName islief.com -Discover -NextClosestSite).HostName
gpresult /v
